Datasheet Details
| Part number | IQXC-42 |
|---|---|
| Manufacturer | IQD |
| File Size | 173.29 KB |
| Description | Quartz Crystal |
| Datasheet |
 IQXC-42-IQD.pdf
|
| Part number | IQXC-42 |
|---|---|
| Manufacturer | IQD |
| File Size | 173.29 KB |
| Description | Quartz Crystal |
| Datasheet |
IQXC-42-IQD.pdf
|

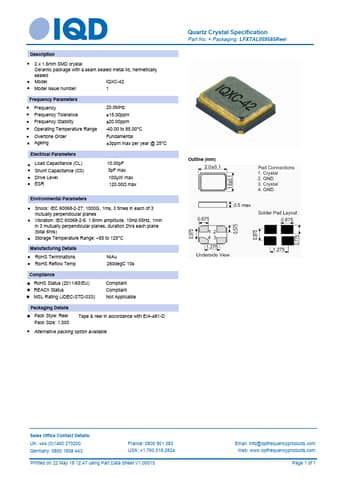

2 x 1.6mm SMD crystal Ceramic package with a seam sealed metal lid, hermetically sealed Model IQXC-42 Model Issue number 1 Frequency Parameters Frequency Frequency Tolerance Frequency Stability Operating Temperature Range Overtone Order Ageing 20.0MHz ±15.00ppm ±20.00ppm -40.00 to 85.00°C Fundamental ±3ppm max per year @ 25°C Electrical Parameters Load Capacitance (CL) Shunt Capacitance (C0) Drive Level ESR 10.00pF 3pF max 100µW max 120.00Ω max Environmental Parameters Shock: IEC 60
