IRFS38N20D, Power MOSFET

PD - 94358 SMPS MOSFET IRFB38N20D IRFS38N20D IRFSL38N20D HEXFET® Power MOSFET l Applications High frequency DC-DC converters VDSS 200V RDS(on) m.

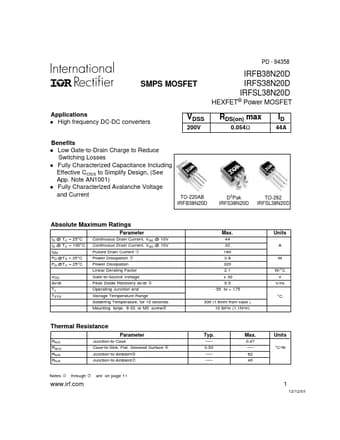

datasheet Preview Page 1 from Datasheet4u.com

IRFS38N20D_IRF.pdf

IRFS38N20D Datasheet Preview — Preview of IRFS38N20D PDF

Datasheet Details

Part number:

IRFS38N20D

Manufacturer:

IRF

File Size:

133.62 KB

Description:

Power MOSFET

Features

* Part Marking Information EXAMPLE: THIS IS AN IRF1010 LOT CODE 1789 ASSEMBLED ON WW 19, 1997 IN THE ASSEMBLY LINE "C" INTERNATIONAL RECTIFIER LOGO ASSEMBLY LOT CODE PART NUMBER DATE CODE YEAR 7 = 1997 WEEK 19 LINE C 8 www. irf. com IRFB/IRFS/IRFSL38N20D D2Pak Package Outline 1 0.54 (.4 15) 1 0.2

Applications

* High frequency DC-DC converters VDSS 200V RDS(on) max 0.054Ω ID 44A Benefits Low Gate-to-Drain Charge to Reduce Switching Losses l Fully Characterized Capacitance Including Effective COSS to Simplify Design, (See App. Note AN1001) l Fully Characterized Avalanche Voltage and Current l TO-220AB I
