www.DataSheet4U.com ISOCOM ISPB20 COMPONENTS .
The ISPB20 is a 1-Form B solid state relay in a space saving 4 pin DIL package.

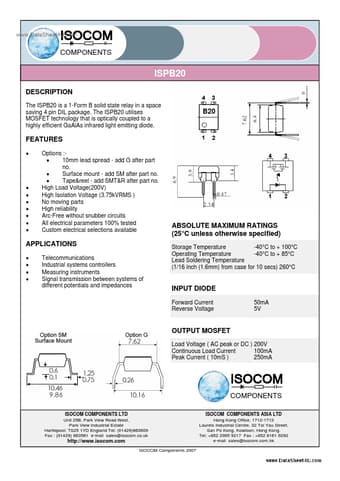

datasheet Preview Page 1 from Datasheet4u.com

ISPB20_ISOCOMCOMPONENTS.pdf

ISPB20 Datasheet Preview — Preview of ISPB20 PDF

Datasheet Details

Part number:

ISPB20

Manufacturer:

ISOCOM COMPONENTS

File Size:

242.03 KB

Description:

Telecommunications

Features

* Options :
* 10mm lead spread - add G after part no.
* Surface mount - add SM after part no.
* Tape&reel - add SMT&R after part no. High Load Voltage(200V) High Isolation Voltage (3.75kVRMS ) No moving parts High reliability Arc-Free without snubber circuits All elect

Applications

* Telecommunications Industrial systems controllers Measuring instruments Signal transmission between systems of different potentials and impedances INPUT DIODE Forward Current Reverse Voltage 50mA 5V OUTPUT MOSFET Load Voltage ( AC peak or DC ) 200V Continuou
