ISP321-2X, ISP321-1 (ISP321-xx) HIGH DENSITY MOUNTING PHOTOTRANSISTOR OPTICALLY COUPLED ISOLATORS

ISOCOM COMPONENTS

Description

www.DataSheet4U.com ISP321-1X, ISP321-2X, ISP321-4X ISP321-1, ISP321-2, ISP321-4 HIGH DENSITY MOUNTING PHOTOTRANSISTOR OPTICALLY COUPLED ISOLATORS .
The ISP321-1 , ISP321-2 , ISP321-4 series of optically coupled isolators consist of infrared light emitting diodes and NPN silicon photo transistors i.

📥 Download Datasheet

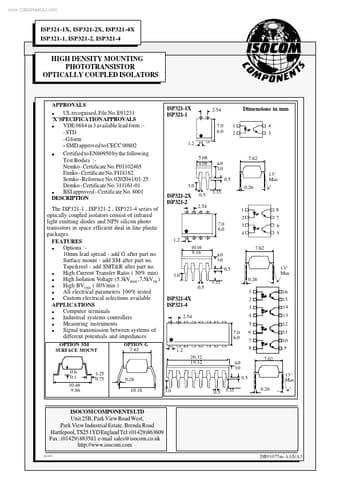

ISP321-2X Datasheet Preview — This datasheet PDF includes multiple part numbers: ISP321-2X, ISP321-1. Please refer to the document for exact specifications by model.

Datasheet Specifications

Part number: ISP321-2X, ISP321-1
Manufacturer: ISOCOM COMPONENTS
File Size: 110.74 KB
Datasheet: ISP321-1_ISOCOMCOMPONENTS.pdf
Description: (ISP321-xx) HIGH DENSITY MOUNTING PHOTOTRANSISTOR OPTICALLY COUPLED ISOLATORS
Note: This datasheet PDF includes multiple part numbers: ISP321-2X, ISP321-1.
Please refer to the document for exact specifications by model.

Features

* l Options :10mm lead spread - add G after part no. Surface mount - add SM after part no. Tape&reel - add SMT&R after part no. l High Current Transfer Ratio ( 50% min) l High Isolation Voltage (5.3kVRMS ,7.5kVPK ) l High BVCEO ( 80Vmin ) l All electrical parameters 100% tested l Custom electrical sel

Applications

* l Computer terminals l Industrial systems controllers l Measuring instruments l Signal transmission between systems of different potentials and impedances OPTION SM SURFACE MOUNT OPTION G ISP321-1X ISP321-1 2.54 7.0 6.0 1 2 Dimensions in mm 4 3 1.2 5.08 4.08 7.62 4.0 3.0 0.5 3.0 13° Max 0.26 IS
