ISP3010 Datasheet - Insight SiP

ISP3010 Built-in Antennas Ultra-Wide Band and Bluetooth Low Energy Smart Module

Preliminary Data Sheet ISP3010 Built-in Antennas Ultra-Wide Band and Bluetooth Low Energy Smart Module This highly miniaturized LGA module, 14 x 14 x 1.5 mm, is based on the DW1000 UWB transceiver and nRF52832 BLE chip. Using a simple user interface via the SPI connection and integrating a Cortex™ M4 CPU, flash and RAM memory combined with optimized antennas, ISP3010 offers the perfect stand-alone ranging module solution for security bubble applications. For longer range applications, ISP3010 .

ISP3010 Features

* IEEE802.15.4-2011 UWB compliant Single Mode BLE 5 Ready NFC-A Tag for OOB pairing Spatial resolution better than 10 cm Fully integrated UWB & BLE matching and Antennas Integrated UWB 38.4 MHz and BLE 32 MHz & 32.768 kHz Clocks DC/DC converters UWB section based on DecaWave DW1000 BLE section based

ISP3010-InsightSiP.pdf

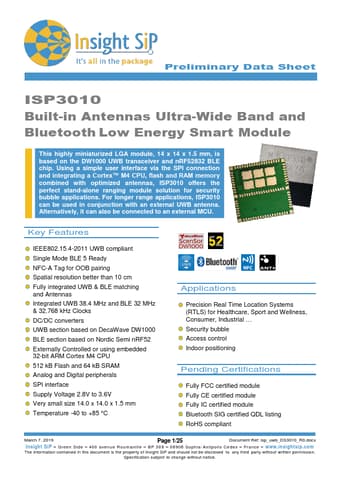

Preview of ISP3010 PDF
ISP3010 Datasheet Preview Page 2 ISP3010 Datasheet Preview Page 3

Datasheet Details

Part number:

ISP3010

Manufacturer:

Insight SiP

File Size:

2.57 MB

Description:

Built-in antennas ultra-wide band and bluetooth low energy smart module.
