ISP1302

Lite V4.2 Bluetooth Low Energy Module

ISP1302 Features

* Applications Single Mode BLE V4.2 Compliant IPv6 Connectivity ECDH Encryption Based on Nordic Semiconductor nRF51 2.4GHz low energy RF Transceiver 32bit ARM Cortex M0 CPU 128 kB or 256 kB Flash 16 kB SRAM 16 GPIOs including 5 ADC inputs & 1 ADC reference Ultra Low Power Consumption Single 1.8 to 3

ISP1302 Datasheet (2.16 MB)

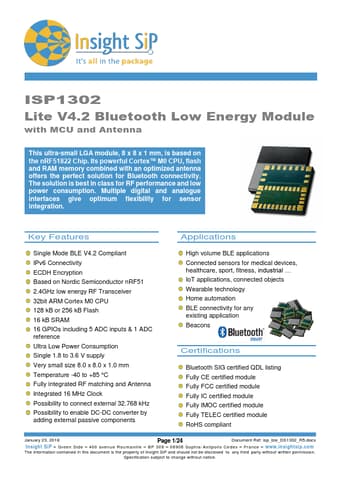

Preview of ISP1302 PDF

Datasheet Details

Part number:

ISP1302

Manufacturer:

Insight SiP

File Size:

2.16 MB

Description:

Lite v4.2 bluetooth low energy module.
ISP1302 Lite V4.2 Bluetooth Low Energy Module with MCU and Antenna This ultra-small LGA module, 8 x 8 x 1 mm, is based on the nRF51822 Chip. Its power.
