ISP1303 Datasheet - Insight SiP

ISP1303 High Performance Bluetooth V4.2 & ANT Low Energy Module

ISP130301 High Performance Bluetooth V4.2 & ANT(1) Low Energy Module with MCU and Antenna This tiny LGA module, 8 x 11 x 1.2 mm, is based on the nRF51 series Chip. Its powerful Cortex™ M0 CPU, flash and RAM memory combined with an optimized antenna offers the perfect solution for Bluetooth connectivity. The solution is best in class for RF performance and low power consumption. All chip digital and analogue interfaces are available and give optimum capabilities for sensor integration. Key Featu.

ISP1303 Features

* Single Mode BLE V4.2 Compliant (1) ANT+ protocol in option IPv6 Connectivity ECDH Encryption Based on Nordic Semiconductor nRF51 2.4GHz low energy RF Transceiver 32bit ARM Cortex M0 CPU 256 kB Flash 16 kB or 32 kB SRAM in option 30 GPIOs including 6 ADC inputs and / or 2 ADC reference Ultra Low Powe

ISP1303-InsightSiP.pdf

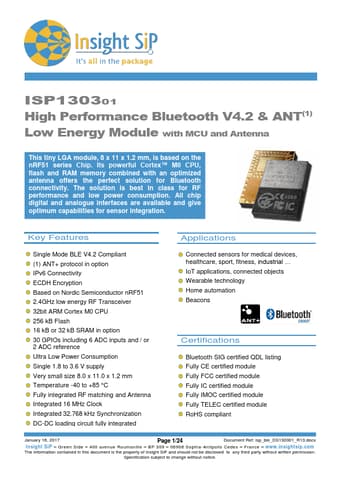

Preview of ISP1303 PDF
ISP1303 Datasheet Preview Page 2 ISP1303 Datasheet Preview Page 3

Datasheet Details

Part number:

ISP1303

Manufacturer:

Insight SiP

File Size:

1.84 MB

Description:

High performance bluetooth v4.2 & ant low energy module.
