ISP1301

Universal Serial Bus On-The-Go transceiver

ISP1301 Features

* s Fully complies with: x Universal Serial Bus Specification Rev. 2.0 x On-The-Go Supplement to the USB 2.0 Specification Rev. 1.0a x On-The-Go Transceiver Specification (CEA

* 2011) Rev. 1.0 s Can transmit and receive serial data at both full-speed (12 Mbit/s) and low-speed (1.5 Mbit/s) data rate

ISP1301 General Description

The ISP1301 is a Universal Serial Bus (USB) On-The-Go (OTG) transceiver device that is fully compliant with Universal Serial Bus Specification Rev. 2.0 and On-The-Go Supplement to the USB Specification Rev. 1.0a. The ISP1301 can transmit and receive serial data at both full-speed (12 Mbit/s) and low-s.

ISP1301 Datasheet (221.29 KB)

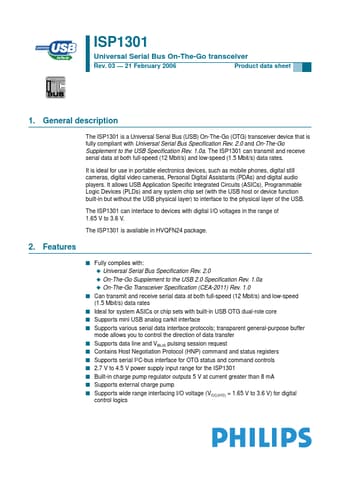

Preview of ISP1301 PDF

Datasheet Details

Part number:

ISP1301

Manufacturer:

NXP ↗

File Size:

221.29 KB

Description:

Universal serial bus on-the-go transceiver.
