ISP130301

Bluetooth Low Energy Module

ISP130301 Features

* Applications Single Mode BLE v4.1 Slave or Master Based on Nordic Semiconductor nRF51 family 2.4GHz low energy RF Transceiver 32bit ARM Cortex M0 CPU 256kB Flash and 16 kB SRAM Analog and Digital peripherals Ultra Low Power Consumption Single 1.8 to 3.6 V supply Very small size 8.0 x 11.0 x 1.2 mm

ISP130301 General Description

This module is based on nRF51822 Nordic Semiconductor 2.4GHz wireless System on Chip (SoC) integrating a 2.4 GHz transceiver, a 32 bit ARM Cortex™-M0 CPU, a flash.

ISP130301 Datasheet (2.06 MB)

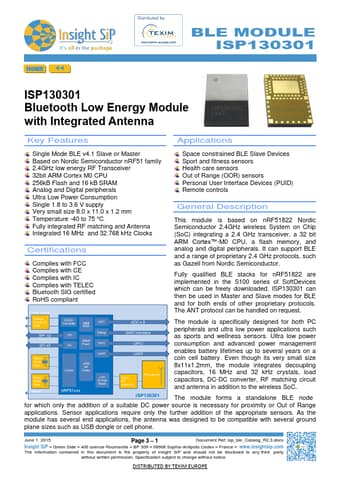

Preview of ISP130301 PDF

Datasheet Details

Part number:

ISP130301

Manufacturer:

Insight SiP

File Size:

2.06 MB

Description:

Bluetooth low energy module.
