ISP1507 Datasheet PDF (High Performance Bluetooth 5 Ready Low Energy Module)

ISP1507 - High Performance Bluetooth 5 Ready Low Energy Module

Description

Preliminary release RF specification update Marking update + schematic CIAA Marking update + RF exposure for FCC/IC Pin description update Current consumption update Bluetooth version update Reference design addition Max capacitance & inductance specification Addition of AL variant AL variant specif

Features

Multi-protocol 2.4GHz Ultra Low Power RF Transceiver based on Nordic Semiconductor nRF52.
Bluetooth 5.0 & Mesh ANT 2.4 GHz proprietary protocol.
NFC-A Tag for OOB pairing in option.
Fully integrated RF matching and Antenna.
Integrated 32 MHz & 32kHZ Clock in option.
DC/DC converter with loading circuit.
32-bit ARM Cortex M4 CPU.
512 kB Flash and 64 kB SRAM or 192 kB Flash and 24 kB SRAM variants.
From 10 to 30 configurable GPIOs including from 2 to 8.

Datasheet Details

Part number	ISP1507
Manufacturer	Insight SiP
File Size	2.29 MB
Description	High Performance Bluetooth 5 Ready Low Energy Module
Datasheet	ISP1507 Datasheet
Additional preview pages of the ISP1507 datasheet.

📁 Similar Datasheet

ISP1507A - ULPI Hi-Speed Universal Serial Bus On-The-Go transceiver (NXP Semiconductors)

ISP1507B - ULPI Hi-Speed Universal Serial Bus On-The-Go transceiver (NXP Semiconductors)

ISP1507C - ULPI Hi-Speed Universal Serial Bus host and peripheral transceiver (NXP)

ISP1507D - ULPI Hi-Speed Universal Serial Bus host and peripheral transceiver (NXP)

ISP1501 - Hi-speed Universal Serial Bus Peripheral Transceiver (NXP)

ISP1504A - ULPI Hi Speed USB Transceiver (NXP)

ISP1504C - ULPI Hi Speed USB Transceiver (NXP)

ISP1505A - ULPI Hi Speed USB Transceiver (NXP)

ISP1505C - ULPI Hi Speed USB Transceiver (NXP)

ISP1506A - (ISP1506A/B) ULPI Hi-Speed Universal Serial Bus On-The-Go transceiver (NXP)

Full PDF Text Transcription

Click to expand full text

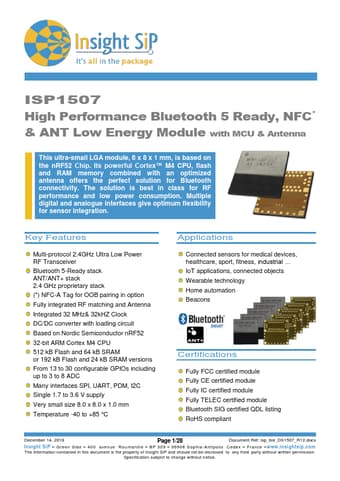

ISP1507 Data Sheet Bluetooth 5.0 Low Energy Module Supporting Mesh, ANT, NFC With built-in MCU & Antenna This ultra-small LGA module, 8 x 8 x 1 mm, is based on the nRF52 Chip. Its powerful Cortex™ M4 CPU, flash and RAM memory combined with an optimized antenna offers the perfect solution for Bluetooth connectivity. The solution is best in class for RF performance and low power consumption. Multiple digital and analogue interfaces give optimum flexibility for sensor integration. Key Features ▪ Multi-protocol 2.4GHz Ultra Low Power RF Transceiver based on Nordic Semiconductor nRF52 ▪ Bluetooth 5.0 & Mesh ANT 2.
