ISP321-2 (ISP321-xx) HIGH DENSITY MOUNTING PHOTOTRANSISTOR OPTICALLY COUPLED ISOLATORS

www.DataSheet4U.com ISP321-1X, ISP321-2X, ISP321-4X ISP321-1, ISP321-2, ISP321-4 HIGH DENSITY MOUNTING PHOTOTRANSISTOR OPTICALLY COUPLED ISOLATORS APPROVALS l UL recognised, File No. E91231 'X' SPECIFICATION APPROVALS l VDE 0884 in 3 available lead form : - STD - G form - SMD approved to CECC 00802 l Certified to EN60950 by the following Test Bodies :Nemko - Certificate No. P01102465 Fimko - Certificate No. FI18162 Semko - Reference No. 0202041/01-25 Demko - Certificate No. 311161-01 l BSI ap.

ISP321-2 Features

* l Options :10mm lead spread - add G after part no. Surface mount - add SM after part no. Tape&reel - add SMT&R after part no. l High Current Transfer Ratio ( 50% min) l High Isolation Voltage (5.3kVRMS ,7.5kVPK ) l High BVCEO ( 80Vmin ) l All electrical parameters 100% tested l Custom electrical sel

ISP321-1_ISOCOMCOMPONENTS.pdf

This datasheet PDF includes multiple part numbers: ISP321-2, ISP321-1. Please refer to the document for exact specifications by model.

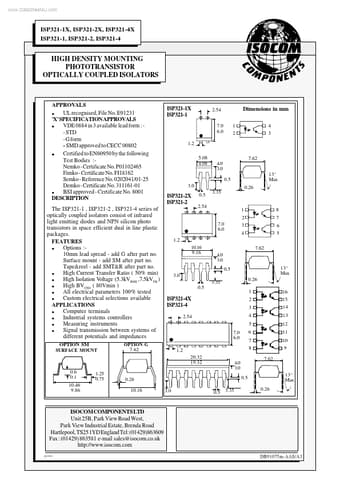

ISP321-2 Datasheet Preview Page 2 ISP321-2 Datasheet Preview Page 3

Datasheet Details

Part number:

ISP321-2, ISP321-1

Manufacturer:

ISOCOM COMPONENTS

File Size:

110.74 KB

Description:

(isp321-xx) high density mounting phototransistor optically coupled isolators.

Note:

This datasheet PDF includes multiple part numbers: ISP321-2, ISP321-1.
Please refer to the document for exact specifications by model.
