ISP321-1-88XSM, HIGH DENSITY MOUNTING PHOTOTRANSISTOR OPTICALLY COUPLED ISOLATORS

www.DataSheet4U.com ISP321-1-88XSM HIGH DENSITY MOUNTING PHOTOTRANSISTOR OPTICALLY COUPLED ISOLATORS APPROVALS l UL recognised, File No.E91231 'X'.
The ISP321-1-88XSM is an optically coupled isolator consisting of infrared light emitting diodes and NPN silicon photo transistors in a space efficien.

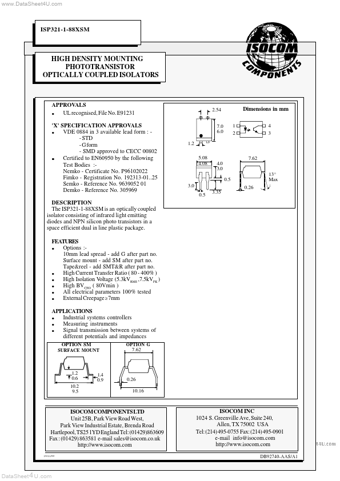

datasheet Preview Page 1 from Datasheet4u.com

ISP321-1-88XSM_ETC.pdf

ISP321-1-88XSM Datasheet Preview — Preview of ISP321-1-88XSM PDF

Datasheet Details

Part number:

ISP321-1-88XSM

Manufacturer:

ETC

File Size:

183.61 KB

Description:

HIGH DENSITY MOUNTING PHOTOTRANSISTOR OPTICALLY COUPLED ISOLATORS

Features

* l Options :10mm lead spread - add G after part no. Surface mount - add SM after part no. Tape&reel - add SMT&R after part no. l High Current Transfer Ratio ( 80 - 400% ) l High Isolation Voltage (5.3kVRMS ,7.5kVPK ) l High BVCEO ( 80Vmin ) l All electrical parameters 100% tested l External Creepage

Applications

* l Industrial systems controllers l Measuring instruments l Signal transmission between systems of different potentials and impedances OPTION SM SURFACE MOUNT OPTION G 2.54 7.0 6.0 1.2 5.08 4.08 1 2 Dimensions in mm 4 3 7.62 4.0 3.0 0.5 13° Max 0.26 3.0 0.5 3.35 7.62 1.2 0.6 10.2 9.5 1.4 0.9
