ISQ1 Datasheet - ISOCOM COMPONENTS

ISQ1 (ISQ1 - ISQ74) HIGH DENSITY PHOTOTRANSISTOR OPTICALLY COUPLED ISOLATORS

www.DataSheet4U.com IS1, IS5, IS74 ISD1, ISD5, ISD74 ISQ1, ISQ5, ISQ74 HIGH DENSITY PHOTOTRANSISTOR OPTICALLY COUPLED ISOLATORS APPROVALS l UL recognised, File No. E91231 'X' SPECIFICATION APPROVALS VDE 0884 in 3 available lead form : - STD - G form - SMD approved to CECC 0080 IS1X, IS5X, IS74X are certified to EN60950 by the following Test Bodies :Nemko - Certificate No. P01102464 Fimko - Certificate No. FI18166 Semko - Reference No. 0202037/01-22 Demko - Certificate No. 311158-01 BSI approv.

ISQ1 Features

* l Options :10mm lead spread - add G after part no. Surface mount - add SM after part no. Tape&reel - add SMT&R after part no. l High Isolation Voltage (5.3kVRMS ,7.5kVPK ) l High BVCEO (70V min) IS5, ISD5, ISQ5 APPLICATIONS Computer terminals l Industrial systems controllers l Signal transmission be

ISQ1 Datasheet (103.05 KB)

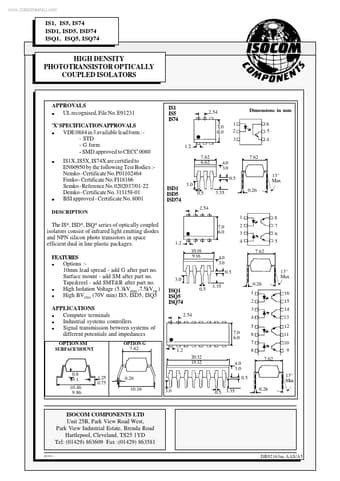

ISQ1 Datasheet Preview — Preview of ISQ1 PDF

Datasheet Details

Part number:

ISQ1

Manufacturer:

ISOCOM COMPONENTS

File Size:

103.05 KB

Description:

(isq1 - isq74) high density phototransistor optically coupled isolators.
