ICPLW2611, ICPLW137 - Optocoupler

ICPLW2611 Description

ISOCOM COMPONENTS ICPLW137, ICPLW2601, ICPLW2611 .
The ICPLW137, ICPLW2601 and ICPLW2611 devices each consist of an infrared emitting diode, optically coupled to a high speed integrated photo detector.

ICPLW2611 Features

* High Speed 10Mbit/s
* Wide Body Package
* 10kV/μs min. Common Mode Transient Immunity (ICPLW2611)
* High AC Isolation Voltage 5000VRMS
* Guaranteed Performance from -40°C to +85°C
* Strobable Logic Gate Output
* Pb Free and RoHS Compliant

ICPLW2611 Applications

* Line Receivers, Data Communication
* LSTTL to TTL, LSTTL or 5V CMOS
* Data Multiplexing
* Pulse Transformer Replacement
* Switch Mode Power Supplies
* Ground Loop Elimination
* Computer Peripheral Interface ORDER INFORMATION
* Add SM

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: ICPLW2611, ICPLW137. Please refer to the document for exact specifications by model.

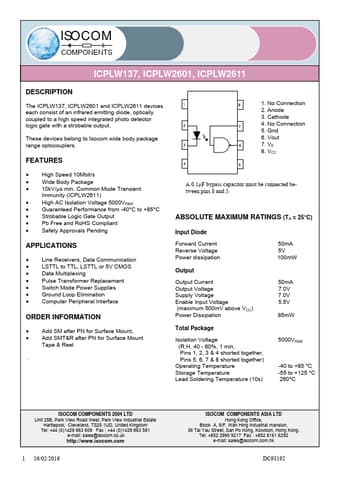

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
ICPLW2611, ICPLW137
Manufacturer
ISOCOM
File Size
647.21 KB
Datasheet
ICPLW137-ISOCOM.pdf
Description
Optocoupler
Note
This datasheet PDF includes multiple part numbers: ICPLW2611, ICPLW137.
Please refer to the document for exact specifications by model.
