ICPL2533 Datasheet, Output, ETC

ICPL2533 Features

  • Output Max 0.3 l High speed - 250k b/s NRZ 3.3 0.5 l High Common Mode Transient 1.3 Immunity 1000V/µs l TTL Compatible ABSOLUTE MAXIMUM RATINGS l Open Collector Outputs (25°C unless otherwise

PDF File Details

Part number:

ICPL2533

Manufacturer:

ETC

File Size:

236.43kb

Download:

📄 Datasheet

Description:

High speed dual channel optically coupled isolator phototransistor output. These dual channel diode-transistor optocouplers use a light emitting diode and an integrated photon detector to provide 2500Volts RM

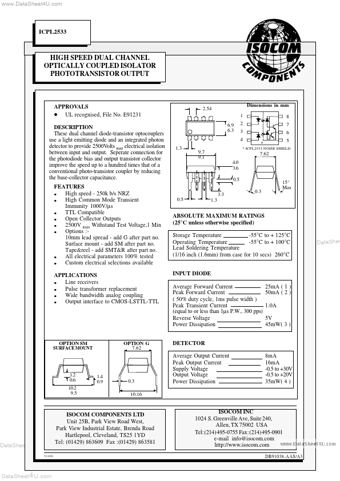

Datasheet Preview: ICPL2533 📥 Download PDF (236.43kb)
Page 2 of ICPL2533 Page 3 of ICPL2533

ICPL2533 Application

  • Applications l Line receivers l Pulse transformer replacement l Wide bandwidth analog coupling l Output interface to CMOS-LSTTL-TTL INPUT DIODE Aver
