ICPL2530

Phototransistor

ICPL2530 Features

* High Speed 1Mbit/s

* High AC Isolation Voltage 5000VRMS

* Guaranteed Performance from 0°C to 70°C

* Wide Operating Temperature Range -40°C to 100 °C

* Pb Free and RoHS Compliant

* Safety Approvals Pending APPLICATIONS

* Line Receivers

ICPL2530 General Description

The ICPL2530 and ICPL2531 dual channel devices each consists of an infrared emitting diode optically coupled to a high speed photo detector transistor. A separate connection for the photodiode bias and output transistor collector increases the speed by several orders of magnitude over conventional p.

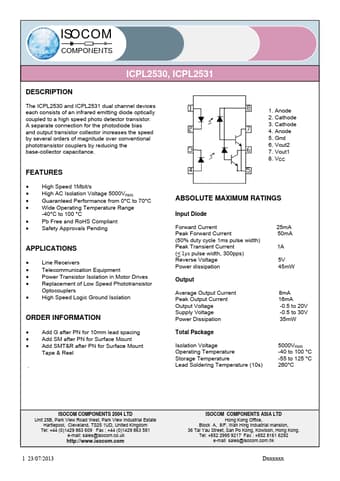

ICPL2530 Datasheet (667.04 KB)
