ICPL2631 Datasheet, Optocoupler, ISOCOM

ICPL2631 Features

  • Optocoupler
  • High speed 10Mbit/s
  • 10kV/μs min. Common Mode Transient Immunity (ICPL2631)
  • High AC Isolation voltage 5000Vrms
  • Guaranteed performance from -4

PDF File Details

Part number:

ICPL2631

Manufacturer:

ISOCOM

File Size:

675.42kb

Download:

📄 Datasheet

Description:

Optocoupler. The ICPL2630 and ICPL2631 dual channel devices each consists of an infrared emitting diode, optically coupled to a high speed integra

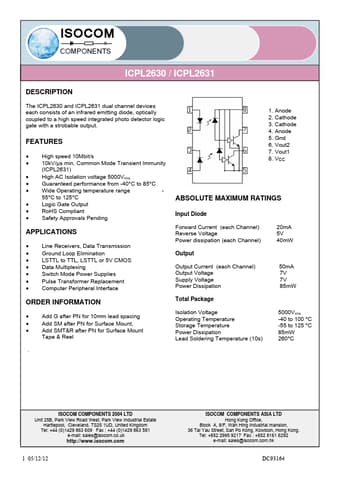

Datasheet Preview: ICPL2631 📥 Download PDF (675.42kb)
Page 2 of ICPL2631 Page 3 of ICPL2631

ICPL2631 Application

  • Applications
  • Line Receivers, Data Transmission
  • Ground Loop Elimination
  • LSTTL to TTL, LSTTL or 5V CMOS
  • Data
