ICPL2531

Phototransistor

ICPL2531 Features

* High Speed 1Mbit/s

* High AC Isolation Voltage 5000VRMS

* Guaranteed Performance from 0°C to 70°C

* Wide Operating Temperature Range -40°C to 100 °C

* Pb Free and RoHS Compliant

* Safety Approvals Pending APPLICATIONS

* Line Receivers

ICPL2531 General Description

The ICPL2530 and ICPL2531 dual channel devices each consists of an infrared emitting diode optically coupled to a high speed photo detector transistor. A separate connection for the photodiode bias and output transistor collector increases the speed by several orders of magnitude over conventional p.

ICPL2531 Datasheet (667.04 KB)

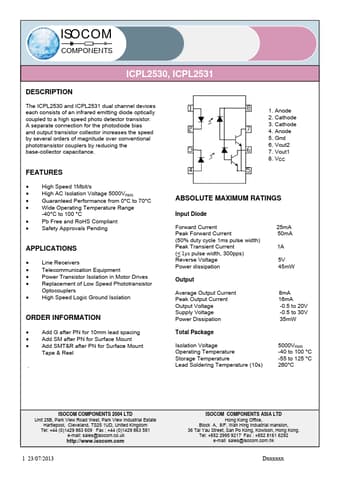

Preview of ICPL2531 PDF

Datasheet Details

Part number:

ICPL2531

Manufacturer:

ISOCOM

File Size:

667.04 KB

Description:

Phototransistor.
