ICPL0453

(ICPL0452 - ICPL0501) infrared emitting diode

ICPL0453 Features

* Half Pitch 1.27mm High speed 1Mbit/s 15kV/μs min. Common Mode Transient Immunity (ICPL0453) High AC Isolation Voltage 3750Vrms Guaranteed Performance from 0°C to 70°C Wide Operating Temperature Range

ICPL0453 General Description

The ICPL0452, ICPL0453, ICPL0500 and ICPL0501 devices each consist of an infrared emitting diode, optically coupled to a high speed photo detector transistor. A separate connection for the photodiode bias and output-transistor collector increase the speed by several orders of magnitude over conventi.

ICPL0453 Datasheet (565.45 KB)

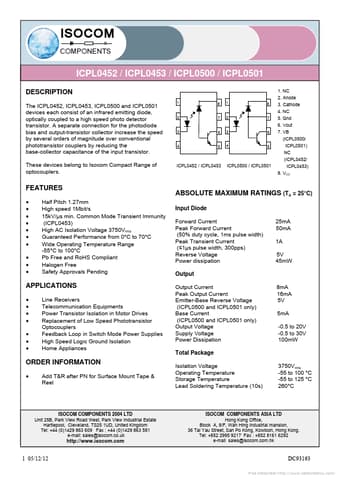

Preview of ICPL0453 PDF

Datasheet Details

Part number:

ICPL0453

Manufacturer:

ISOCOM

File Size:

565.45 KB

Description:

(icpl0452 - icpl0501) infrared emitting diode.
