ICPL0600

(ICPL0600 - ICPL0611) infrared emitting diode

ISOCOM

ICPL0600 Features

* Half Pitch 1.27mm High Speed 10Mbit/s 10kV/μs min. Common Mode Transient Immunity (ICPL0611) High AC Isolation voltage 3750VRMS Guaranteed Performance from -40°C to 85°C Wide Operating Temperature Ran

ICPL0600 General Description

The ICPL0600, ICPL0601 and ICPL0611 devices each consist of an infrared emitting diode, optically coupled to a high speed integrated photo detector logic gate with a strobable output. These devices belong to Isocom Compact Range of Optocouplers. 1 8 2 7 3 6 1. No Connection 2. Anode 3. Cathode .

ICPL0600 Datasheet (628.10 KB)

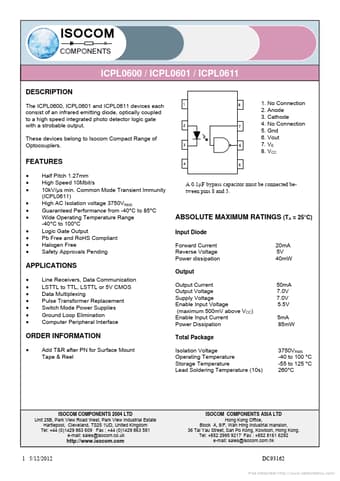

ICPL0600 Datasheet Preview — Preview of ICPL0600 PDF

Datasheet Details

Part number:

ICPL0600

Manufacturer:

ISOCOM

File Size:

628.10 KB

Description:

(icpl0600 - icpl0611) infrared emitting diode.
