ICPL0500, ICPL0452 Datasheet - ISOCOM

ICPL0500 (ICPL0452 - ICPL0501) infrared emitting diode

The ICPL0452, ICPL0453, ICPL0500 and ICPL0501 devices each consist of an infrared emitting diode, optically coupled to a high speed photo detector transistor. A separate connection for the photodiode bias and output-transistor collector increase the speed by several orders of magnitude over conventi.

ICPL0500 Features

* Half Pitch 1.27mm High speed 1Mbit/s 15kV/μs min. Common Mode Transient Immunity (ICPL0453) High AC Isolation Voltage 3750Vrms Guaranteed Performance from 0°C to 70°C Wide Operating Temperature Range

ICPL0452_ISOCOM.pdf

This datasheet PDF includes multiple part numbers: ICPL0500, ICPL0452. Please refer to the document for exact specifications by model.

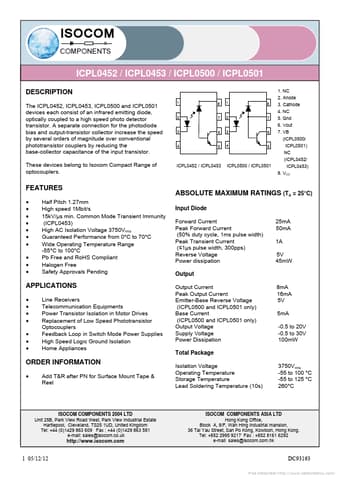

ICPL0500 Datasheet Preview Page 2 ICPL0500 Datasheet Preview Page 3

Datasheet Details

Part number:

ICPL0500, ICPL0452

Manufacturer:

ISOCOM

File Size:

565.45 KB

Description:

(icpl0452 - icpl0501) infrared emitting diode.

Note:

This datasheet PDF includes multiple part numbers: ICPL0500, ICPL0452.
Please refer to the document for exact specifications by model.
