ICPL0531

Infrared Emitting Diode

ISOCOM

ICPL0531 Features

* High speed 1Mbit/s

* Half Pitch 1.27mm

* High AC Isolation Voltage 3750VRMS

* Guaranteed Performance from 0°C to 70°C

* Wide Operating Temperature Range

* -55°C to 100°C

* Pb Free and RoHS Compliant

* Safety Approvals Pending APPLICAT

ICPL0531 General Description

The ICPL0530 and ICPL0531 dual channel devices each consists of an infrared emitting diode optically coupled to a high speed photo detector transistor. Separate connection for the photodiode and output transistor collector increases the speed by several order of magnitude over conventional phototran.

ICPL0531 Datasheet (614.63 KB)

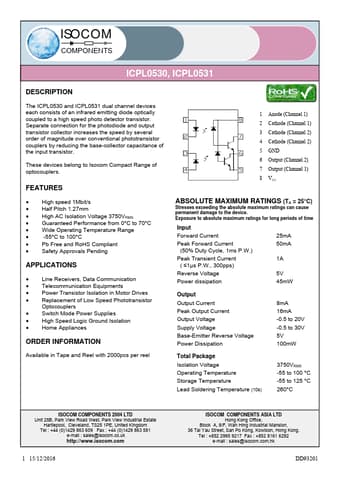

ICPL0531 Datasheet Preview — Preview of ICPL0531 PDF

Datasheet Details

Part number:

ICPL0531

Manufacturer:

ISOCOM

File Size:

614.63 KB

Description:

Infrared emitting diode.
