ICPLW4503

Infrared Emitting Diode

ICPLW4503 Features

* High Speed 1Mbit/s

* Wide Body Package

* 15kV/μs min. Common Mode Transient Immunity (ICPLW4503)

* High AC Isolation Voltage 5000VRMS

* Guaranteed Performance from 0°C to +70°C

* Pb Free and RoHS Compliant

* Safety Approvals Pending APPLICATI

ICPLW4503 General Description

The ICPLW135, ICPLW136 and ICPLW4503 devices each consist of an infrared emitting diode, optically coupled to a high speed photo detector transistor. A separate connection for the photodiode bias and output-transistor collector increase the speed by several orders of magnitude over conventional phot.

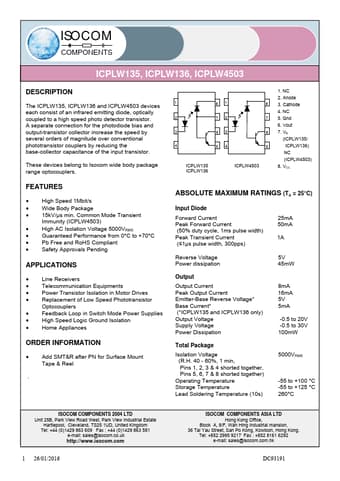

ICPLW4503 Datasheet (669.91 KB)

Preview of ICPLW4503 PDF

Datasheet Details

Part number:

ICPLW4503

Manufacturer:

ISOCOM

File Size:

669.91 KB

Description:

Infrared emitting diode.
