ISTS708

REFLECTIVE OPTICAL SWITCHES

ISOCOM

ISTS708 Features

* l Phototransistor output l Opaque housing provides improved visible light rejection l Three available package types l Adjustable side-mounting provision l Also available with flying leads, with or without connector, supplied as required APPLICATIONS l Copiers, Printers, Facsimilies, Record Players,

ISTS708 General Description

The ISTS149, ISTS703A, ISTS708 each consist 5.1 of an infrared emitting diode and a NPN silicon photo transistor mounted side by side on point of converging axes in a polycarbonate housing. The optimum response package is designed to optimise the mechanical resolution, coupling efficiency, ambient l.

ISTS708 Datasheet (75.10 KB)

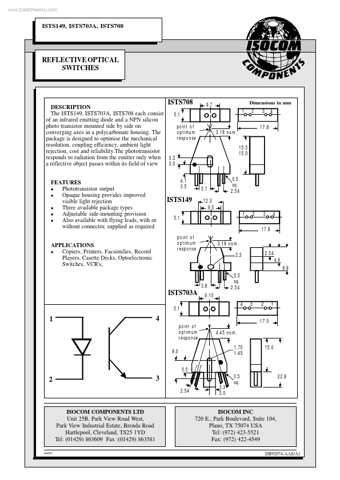

ISTS708 Datasheet Preview — Preview of ISTS708 PDF

Datasheet Details

Part number:

ISTS708

Manufacturer:

ISOCOM

File Size:

75.10 KB

Description:

Reflective optical switches.
