BM23

Bluetooth 4.1 Stereo Audio-Module

BM23 Features

* Complete, Fully Certified, Embedded 2.4 GHz Bluetooth® Version 4.1 Module

* Bluetooth Classic (BDR/EDR)

* Bluetooth SIG Certified

* Onboard embedded Bluetooth Stack

* Transparent UART mode for seamless serial data over UART interface

* Easy to configure with Windows GUI or

BM23 General Description

Stereo module is a fully-certified Bluetooth® Version 4.1 (BDR/EDR) module for designers who want to add Bluetooth® wireless audio and voice applications to their products. This Bluetooth SIG certified module provides a complete wireless solution with Bluetooth stack, integrated antenna, and worldw.

BM23 Datasheet (2.37 MB)

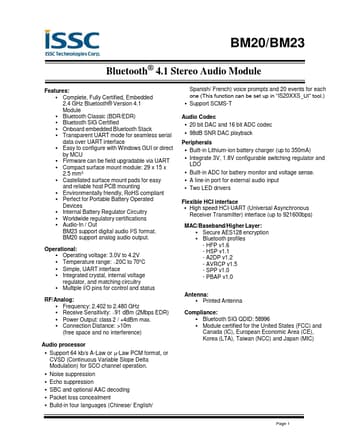

Preview of BM23 PDF

Datasheet Details

Part number:

BM23

Manufacturer:

ISSC

File Size:

2.37 MB

Description:

Bluetooth 4.1 stereo audio-module.
