BM2301 Datasheet - Bookly

BM2301 P-Channel MOSFET

P-Channel 1.25-W, 2.5-V MOSFET PRODUCT SUMMARY VDS (V) rDS(on) (W) 0.130 @ VGS = 4.5 V 20 0.190 @ VGS = 2.5 V ID (A) 2.3 1.9 TO-236 (SOT-23) G1 S2 3D Top View Si2301DS (A1) Marking Code BM2301 ABSOLUTE MAXIMUM RATINGS (TA = 25_C UNLESS OTHERWISE NOTED) Parameter Symbol Limit Drain-Source Voltage Gate-Source Voltage Continuous Drain Current (TJ = 150_C)b Pulsed Drain Currenta Continuous Source Current (Diode Conduction)b Power .

BM2301-Bookly.pdf

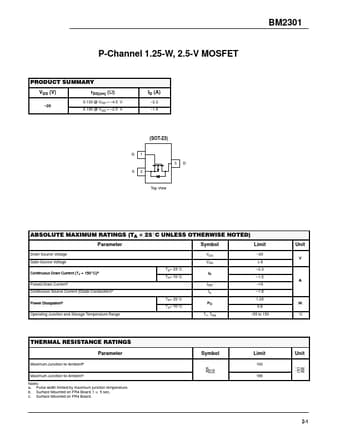

Preview of BM2301 PDF
BM2301 Datasheet Preview Page 2 BM2301 Datasheet Preview Page 3

Datasheet Details

Part number:

BM2301

Manufacturer:

Bookly

File Size:

40.61 KB

Description:

P-channel mosfet.
