IS25LQ016

16M-BIT 3V- QUAD SERIAL FLASH MEMORY

IS25LQ016 Features

* Single Power Supply Operation - Low voltage range: 2.3 V - 3.6 V

* Memory Organization - IS25LQ016: 2048K x 8 (16 Mbit)

* Cost Effective Sector/Block Architecture - 16Mb : Uniform 4KByte sectors / Thirty-two uniform 64KByte blocks

* Serial Peripheral Interface (SPI)

IS25LQ016 General Description

The IS25LQ016 are 16 Mbit Serial Peripheral Interface (SPI) Flash memories, providing single-, dual or quadoutput. The devices are designed to support a 50 MHz fclock rate in normal read mode, and 104 MHz in fast read (Quad output is 100MHz), the fastest in the industry. The devices use a single low.

IS25LQ016 Datasheet (947.59 KB)

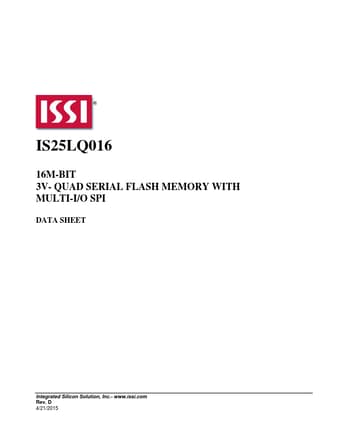

Preview of IS25LQ016 PDF

Datasheet Details

Part number:

IS25LQ016

Manufacturer:

ISSI

File Size:

947.59 KB

Description:

16m-bit 3v- quad serial flash memory.
