IS25LQ020B, IS25LQ025B Datasheet - ISSI

IS25LQ020B 3V QUAD SERIAL FLASH MEMORY

The IS25LQ040B/020B/010B/512B/025B (4M/2M/1M/512K/256Kbit) Serial Flash memory offers a storage solution with flexibility and performance in a simplified pin count package. ISSI’s “Industry Standard Serial Interface” is for systems that have limited space, pins, and power. The device is accessed thr.

IS25LQ020B Features

* Industry Standard Serial Interface - IS25LQ040B: 4Mbit/512Kbyte - IS25LQ020B: 2Mbit/256Kbyte - IS25LQ010B: 1Mbit/128Kbyte - IS25LQ512B: 512Kbit/64Kbyte - IS25LQ025B: 256Kbit/32Kbyte - 256-bytes per Programmable Page Standard - Standard SPI/Dual/Quad Multi-I/O SPI - Supports Serial Flash Di

IS25LQ025B-ISSI.pdf

This datasheet PDF includes multiple part numbers: IS25LQ020B, IS25LQ025B. Please refer to the document for exact specifications by model.

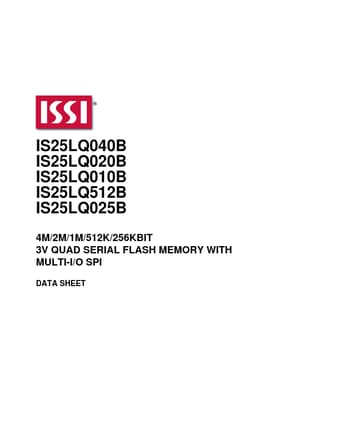

IS25LQ020B Datasheet Preview Page 2 IS25LQ020B Datasheet Preview Page 3

Datasheet Details

Part number:

IS25LQ020B, IS25LQ025B

Manufacturer:

ISSI

File Size:

1.18 MB

Description:

3v quad serial flash memory.

Note:

This datasheet PDF includes multiple part numbers: IS25LQ020B, IS25LQ025B.
Please refer to the document for exact specifications by model.
