IS29GL256, 256M-BIT 3.0V PAGE MODE PARALLEL FLASH MEMORY

IS29GL256 IS29GL128 256Mb/128Mb 3.0V PAGE MODE PARALLEL FLASH MEMORY DATA SHEET IS29GL256/128 256/128 Megabit Flash Memory Page mode Flash Memory, CM.
The IS29GL256/128 offer a fast page access time of 20ns with a corresponding random access time as fast as 70ns.

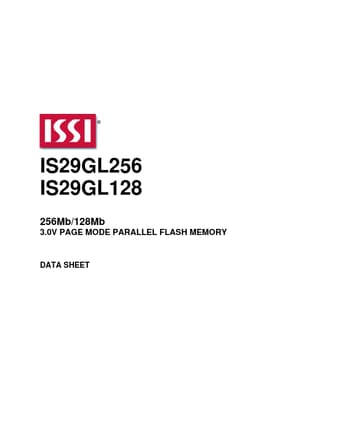

datasheet Preview Page 1 from Datasheet4u.com

IS29GL256-ISSI.pdf

IS29GL256 Datasheet Preview — Preview of IS29GL256 PDF

Datasheet Details

Part number:

IS29GL256

Manufacturer:

ISSI

File Size:

1.50 MB

Description:

256M-BIT 3.0V PAGE MODE PARALLEL FLASH MEMORY

Features

* Single power supply operation - Full voltage range: 2.7 to 3.6 volts read and write operations
* Fast Access Time at -40°C to +125°C: - 70ns (1) at Vcc = 3.0V~3.6V, VIO = 3.0V~3.6V - VIO Input/Output 1.65V to 3.6V. - All input levels (address, control, and DQ input levels) and outp

Applications

* that require higher density, better performance and lower power consumption. Integrated Silicon Solution, Inc. - www. issi. com 2 Rev. A7 03/08/2022 CONNECTION DIAGRAMS Figure 1.1 56-pin Standard TSOP (Top View) (1) (2) NC/A23 1 A22 2 A15 3 A14 4 A13 5 A12 6 A11 7 A10 8 A9 9 A8 10 A19 11 A20 12 W
