IS31AP2117, 8W/CH STEREO CLASS-D AUDIO POWER AMPLIFIER

IS31AP2117 8W/CH STEREO CLASS-D AUDIO POWER AMPLIFIER Advanced Information July 2012 GENERAL .
The IS31AP2117 is an 8W/CH, dual channel, Class-D stereo driver in our audio amplifier family.

IS31AP2117_ISSI.pdf

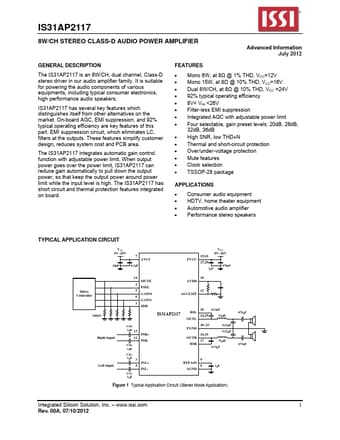

IS31AP2117 Datasheet Preview — Preview of IS31AP2117 PDF

Datasheet Details

Part number:

IS31AP2117

Manufacturer:

ISSI

File Size:

347.02 KB

Description:

8W/CH STEREO CLASS-D AUDIO POWER AMPLIFIER

Features

* which distinguishes itself from other alternatives on the market. On-board AGC, EMI suppression, and 92% typical operating efficiency are key features of this part. EMI suppression circuit, which eliminates LC, filters at the outputs. These features simplify customer design, reduces system cost and

Applications

* http://www. DataSheet4U. net/ Consumer audio equipment HDTV, home theater equipment Automotive audio amplifier Performance stereo speakers TYPICAL APPLICATION CIRCUIT VCC 8V~26V 7 0.1 F 1 F AVCC PVCC 15,16 27,28 VCC 8V~26V 10 F 470 F 14 2 Micro Controller 5 6 1 MUTE F
