IS31AP2110 20W STEREO CLASS-D AUDIO AMPLIFIER

IS31AP2110 Description

IS31AP2110 20W STEREO CLASS-D AUDIO AMPLIFIER WITH POWER LIMIT AND DYNAMIC TEMPERATURE CONTROL November 2015 GENERAL .
The IS31AP2110 is a high efficiency stereo Class-D audio amplifier with adjustable power limit function and dynamic temperature control.

IS31AP2110 Features

* Single supply voltage - 8V ~ 26V for loudspeaker driver - Built-in LDO output 3.3V for others
* Loudspeaker power from 24V supply - BTL Mode: 20W/CH into 8Ω @0.2% THD+N - PBTL Mode: 40W/CH into 4Ω @0.11% THD+N
* Loudspeaker power from 13V supply - BTL Mode: 10W/CH into 8Ω @10% THD+N

IS31AP2110 Applications

* TV audio
* Bluetooth speaker system
* Docking speaker system
* Consumer audio equipment Integrated Silicon Solution, Inc.

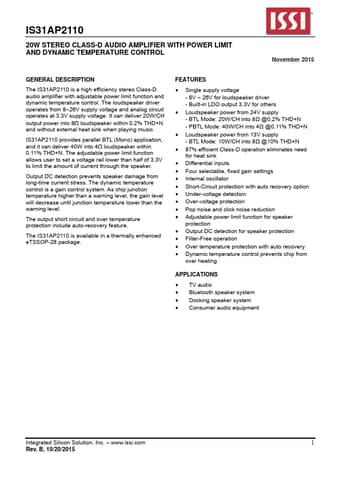

* www. issi. com Rev. B, 10/20/2015 1 IS31AP2110 TYPICAL APPLICATION CIRCUIT VCC Micro Controller 100k 1k 1 2 Left Channel Input CINL+ 1F CINL1F
