IS31AP2121 Datasheet, Amplifier, ISSI

IS31AP2121 Features

• Amplifier
• 16/18/20/24-bits input with I2S, Left-alignment and Right-alignment data format
• PSNR & DR (A-weighting) Loudspeaker: 104dB (PSNR), 110dB (DR) @24V
• Multiple

PDF File Details

Part number:

IS31AP2121

Manufacturer:

ISSI

File Size:

702.52kb

Download:

📄 Datasheet

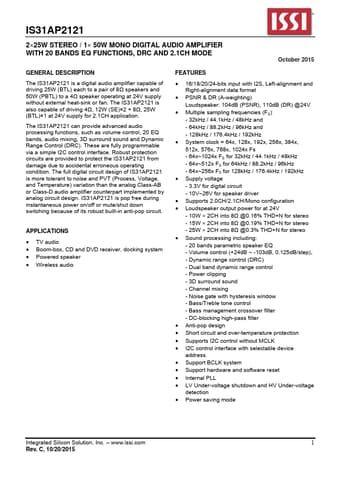

Description:

2×25w stereo / 1× 50w mono digital audio amplifier. The IS31AP2121 is a digital audio amplifier capable of driving 25W (BTL) each to a pair of 8Ω speakers and 50W (PBTL) to a 4Ω speaker

IS31AP2121 Application

• Applications
• TV audio
• Boom-box, CD and DVD receiver, docking system
• Powered speaker
• Wireless audio FEATURES
