IS41C16128 - 128K x 16 (2-MBIT) DYNAMIC RAM

IS41C16128 Description

www.DataSheet4U.com IS41C16128 IS41C16128 128K x 16 (2-MBIT) DYNAMIC RAM WITH EDO PAGE MODE .
ISSI ISSI® ® AUGUST 1998 FEATURES. Extended Data-Out (EDO) Page Mode access cycle. TTL compatible inputs and outputs.

IS41C16128 Features

* Extended Data-Out (EDO) Page Mode access cycle
* TTL compatible inputs and outputs
* Refresh Interval: 512 cycles/8 ms
* Refresh Mode : RAS -Only, CAS -before-RAS (CBR), and Hidden
* JEDEC standard pinout
* Single +5V ± 10% power supply
* Byt

IS41C16128 Applications

* The IS41C16128 is packaged in a 40-pin 400-mil SOJ and TSOP (Type II). FUNCTIONAL BLOCK DIAGRAM OE WE LCAS UCAS CAS CLOCK GENERATOR WE CONTROL LOGICS OE CONTROL LOGIC OE CAS WE RAS RAS CLOCK GENERATOR DATA I/O BUS REFRESH COUNTER DATA I/O BUFFERS ROW DECODER RAS COLUMN DECODERS SENSE AMP

📥 Download Datasheet

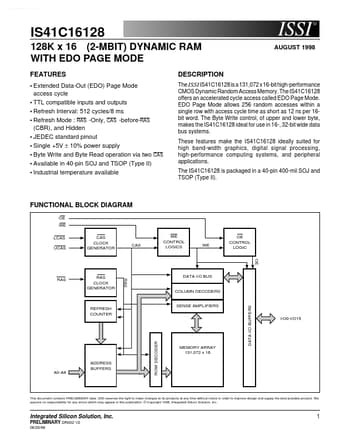

Preview of IS41C16128 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
IS41C16128
Manufacturer
ISSI
File Size
186.28 KB
Datasheet
IS41C16128_ISSI.pdf
Description
128K x 16 (2-MBIT) DYNAMIC RAM
