IS41C16105 Datasheet - Integrated Silicon Solution

1M x 16 (16-MBIT) DYNAMIC RAM WITH FAST PAGE MODE

IS41C16105 Features

* www.DataSheet4U.com 1M x 16 (16-MBIT) DYNAMIC RAM WITH FAST PAGE MODE • TTL compatible inputs and outputs; tristate I/O • Refresh Interval: 1,024 cycles/16 ms • Refresh Mode: RAS-Only, CAS-before-RAS (CBR), Hidden • JEDEC standard pinout • Single power supply: 5V ± 10% (IS41C16105) 3.3V ± 10% (IS4

IS41C16105 General Description

The 1+51 IS41C16105 and IS41LV16105 are 1,048,576 x The IS41C16105 and IS41LV16105 are packaged in a 42-pin 400mil SOJ and 400mil 44- (50-) pin TSOP-2. KEY TIMING PARAMETERS Parameter Max. RAS Access Time (tRAC) Max. CAS Access Time (tCAC) Max. Column Address Access Time (tAA) Min. Fast Page Mode .

IS41C16105 Datasheet (554.78 KB)

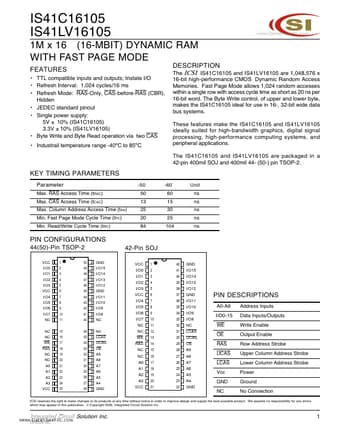

Preview of IS41C16105 PDF

Datasheet Details

Part number:

IS41C16105

Manufacturer:

Integrated Silicon Solution

File Size:

554.78 KB

Description:

1m x 16 (16-mbit) dynamic ram with fast page mode.
