IS42S32160F, IS42R32160F - 512Mb SDRAM

IS42S32160F Description

IS42R32160F, IS45R32160F IS42S32160F, IS45S32160F 16Mx32, 512Mb SDRAM NOVEMBER 2015 .

IS42S32160F Features

* Clock frequency: 166, 143 MHz
* Fully synchronous; all signals referenced to a positive clock edge
* Internal bank for hiding row access/precharge
* Power supply: Vdd/Vddq = 2.3V-3.6V IS42/45S32160F - Vdd/Vddq = 3.3V IS42/45R32160F - Vdd/Vddq = 2.5
* LVTTL i

IS42S32160F Applications

* where the failure or malfunction of the product can reasonably be expected to cause failure of the life support system or to significantly affect its safety or effectiveness. Products are not authorized for use in such applications unless Integrated Silicon Solution, Inc. receives written assurance

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: IS42S32160F, IS42R32160F. Please refer to the document for exact specifications by model.

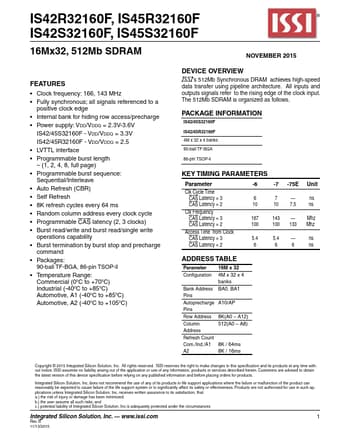

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
IS42S32160F, IS42R32160F
Manufacturer
ISSI
File Size
1.25 MB
Datasheet
IS42R32160F-ISSI.pdf
Description
512Mb SDRAM
Note
This datasheet PDF includes multiple part numbers: IS42S32160F, IS42R32160F.
Please refer to the document for exact specifications by model.
