IS42S32400E Datasheet - ISSI

IS42S32400E - 128Mb SYNCHRONOUS DRAM

A0-A11 Row Address Input A0-A7 Column Address Input BA0, BA1 Bank Select Address DQ0 to DQ31 Data I/O CLK System Clock Input CKE Clock Enable CS Chip Select RAS Row Address Strobe Command CAS Column Address Strobe Command 86 VSS 85 DQ15 84 VSSQ 83 DQ14 82 DQ

IS42S32400E Features

* Clock frequency: 166, 143, 133 MHz

* Fully synchronous; all signals referenced to a positive clock edge

* Internal bank for hiding row access/precharge

* Single Power supply: 3.3V + 0.3V

* LVTTL interface

* Programmable burst length

IS42S32400E-ISSI.pdf

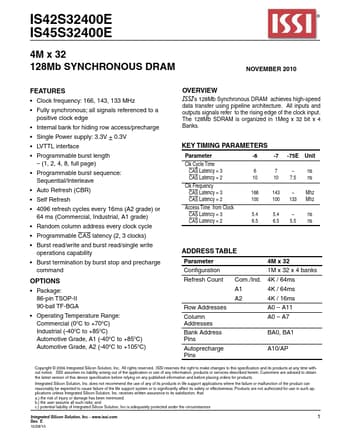

Preview of IS42S32400E PDF
IS42S32400E Datasheet Preview Page 2 IS42S32400E Datasheet Preview Page 3

Datasheet Details

Part number:

IS42S32400E

Manufacturer:

ISSI

File Size:

694.85 KB

Description:

128mb synchronous dram.
