IS42S32400F - 4M x 32 128Mb SYNCHRONOUS DRAM

IS42S32400F Description

IS42S32400F IS45S32400F 4M x 32 128Mb SYNCHRONOUS DRAM JUNE 2024 .

IS42S32400F Features

* Clock frequency: 166, 143, 133 MHz
* Fully synchronous; all signals referenced to a positive clock edge
* Internal bank for hiding row access/precharge
* Single Power supply: 3.3V + 0.3V
* LVTTL interface
* Programmable burst length
* (1, 2,

IS42S32400F Applications

* where the failure or malfunction of the product can reasonably be expected to cause failure of the life support system or to significantly affect its safety or effectiveness. Products are not authorized for use in such applications unless Integrated Silicon Solution, Inc. receives written assurance

📥 Download Datasheet

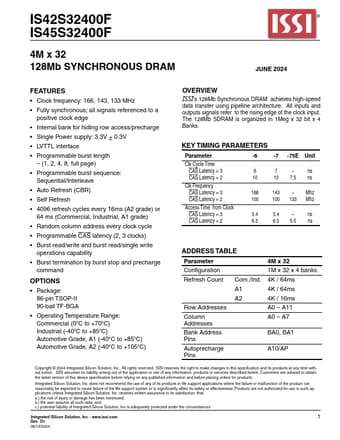

Preview of IS42S32400F PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
IS42S32400F
Manufacturer
ISSI
File Size
827.70 KB
Datasheet
IS42S32400F-ISSI.pdf
Description
4M x 32 128Mb SYNCHRONOUS DRAM
