IS43DR81280D, IS46DR81280D Datasheet - ISSI

IS43DR81280D 128Mx8 DDR2 DRAM

ISSI's 1Gb DDR2 SDRAM uses a double-data-rate architecture to achieve high-speed operation. The double-data rate architecture is essentially a 4n-prefetch architecture, with an interface designed to transfer two data words per clock cycle at the I/O balls. ADDRESS TABLE Parameter 128M x 8 Config.

IS43DR81280D Features

* Standard Voltage: Vdd and Vddq = 1.8V ±0.1V

* Low Voltage (L): Vdd and Vddq = 1.5V ±0.075V

* SSTL_18-compatible for Standard Voltage

* SSTL_15-compatible for Low Voltage

* Double data rate interface: two data transfers per clock cycle

* Differential

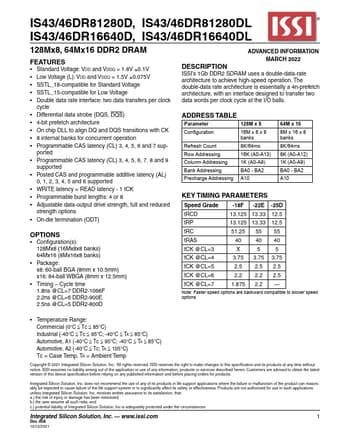

IS46DR81280D-ISSI.pdf

IS43DR81280D Datasheet Preview — This datasheet PDF includes multiple part numbers: IS43DR81280D, IS46DR81280D. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

IS43DR81280D, IS46DR81280D

Manufacturer:

ISSI

File Size:

844.44 KB

Description:

128mx8 ddr2 dram.

Note:

This datasheet PDF includes multiple part numbers: IS43DR81280D, IS46DR81280D.
Please refer to the document for exact specifications by model.
