IS61NLF204818A - 36Mb STATE BUS SRAM

Product Overview

ISSI

Datasheet Details

Part number	IS61NLF204818A
Manufacturer	ISSI
File Size	287.24 KB
Description	36Mb STATE BUS SRAM
Datasheet	IS61NLF204818A Datasheet
Note	This datasheet PDF includes multiple part numbers: IS61NLF204818A, IS61NLF102436A. Please refer to the document for exact specifications by model.

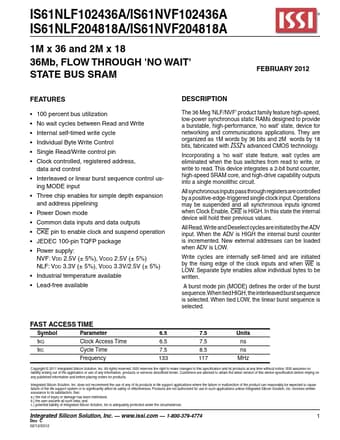

Additional preview pages of the IS61NLF204818A datasheet.

Product details

Description

The 36 Meg 'NLF/NVF' product family feature high-speed, low-power synchronous static RAMs designed to provide a burstable, high-performance, 'no wait' state, device for networking and communications applications.

Features

100 percent bus utilization.
No wait cycles between Read and Write.
Internal self-timed write cycle.
Individual Byte Write Control.
Single Read/Write control pin.
Clock controlled, registered address, data and control.
Interleaved or linear burst sequence control us- ing MODE input.
Three chip enables for simple depth expansion and address pipelining.
Power Down mode.
Common data inputs and data outputs.
