IS62WV10248DALL - ULTRA LOW POWER CMOS STATIC RAM

ISSI

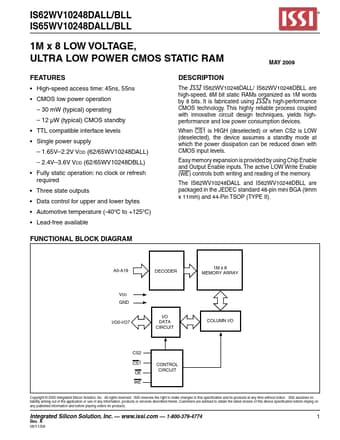

IS62WV10248DALL Datasheet Preview — Preview of IS62WV10248DALL PDF

Datasheet Details

Part number	IS62WV10248DALL
Manufacturer	ISSI
File Size	319.78 KB
Description	ULTRA LOW POWER CMOS STATIC RAM
Datasheet	IS62WV10248DALL-ISSI.pdf

IS62WV10248DALL Product details

Description

The ISSI IS62WV10248DALL/ IS62WV10248DBLL are high-speed, 8M bit static RAMs organized as 1M words by 8 bits.It is fabricated using ISSI's high-performance CMOS technology.This highly reliable process coupled with innovative circuit design techniques, yields highperformance and low power consumption devices.When CS1 is HIGH (deselected) or when CS2 is low (deselected), the device assumes a standby mode at which the power dissipation can be reduced down with CMOS input levels.Easy memory ex

Features

High-speed access time: 45ns, 55ns.
CMOS low power operation.
30 mW (typical) operating.
12 µW (typical) CMOS standby.
TTL compatible interface levels.
Single power supply.
1.65V--2.2V Vdd (62/65WV10248DALL).
2.4V--3.6V Vdd (62/65WV10248DBLL).
Fully static operation: no clock or refresh required.
Three state outputs.
Data control for upper and lower bytes.
Automotive tem.
