IS62WV102416DALL ULTRA LOW POWER & LOW POWER CMOS STATIC RAM

IS62WV102416DALL Description

IS62/65WV102416DALL IS62/65WV102416DBLL 1Mx16 LOW VOLTAGE, ULTRA LOW POWER & LOW POWER CMOS STATIC RAM JANUARY 2015 KEY .
The ISSI IS62/65WV102416DALL, IS62/65WV102416DBLL are ULTRA LOW POWER CMOS 16Mbit static RAMs organized as 1M words by 16 bits.

IS62WV102416DALL Features

* High-speed access time: 45ns, 55ns.
* CMOS low power operation
* 25 µA (typical) CMOS standby
* CMOS for optimum speed and power and TTL compatible interface levels
* Single power supply
* 1.65V~1.98V VDD (IS62/65WV102416DALL)
* 2.2V~3.6V VDD (IS62/65WV10241

IS62WV102416DALL Applications

* where the failure or malfunction of the product can reasonably be expected to cause failure of the life support system or to significantly affect its safety or effectiveness. Products are not authorized for use in such applications unless Integrated Silicon Solution, Inc. receives written assurance

📥 Download Datasheet

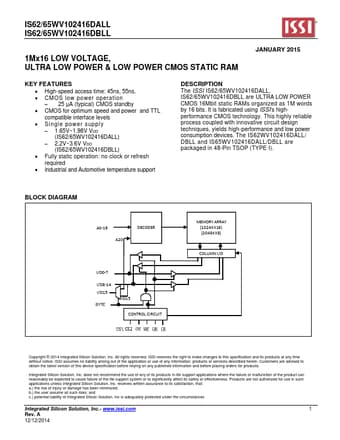

Preview of IS62WV102416DALL PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
IS62WV102416DALL
Manufacturer
ISSI
File Size
906.84 KB
Datasheet
IS62WV102416DALL-ISSI.pdf
Description
ULTRA LOW POWER & LOW POWER CMOS STATIC RAM
