IS62WV102416EALL ULTRA LOW POWER CMOS STATIC RAM

IS62WV102416EALL Description

IS62/65WV102416EALL IS62/65WV102416EBLL 1Mx16 LOW VOLTAGE, ULTRA LOW POWER CMOS STATIC RAM FEBRUARY 2016 KEY .
The IS62WV102416EALL/BLL and IS65WV102416EALL/BLL are Low Power, 16M bit static RAMs organized as 1024K words by 16bits.

IS62WV102416EALL Features

* High-speed access time: 45ns, 55ns
* CMOS low power operation
* Operating (typical): - 10.8mW (1.8V), 18mW (3.0V)
* CMOS Standby (typical): - 48 µW (1.8V), 90 µW (3.0V)
* TTL compatible interface levels
* Single power supply
* 1.65V
* 1.98V Vdd (62/65WV

IS62WV102416EALL Applications

* where the failure or malfunction of the product can reasonably be expected to cause failure of the life support system or to significantly affect its safety or effectiveness. Products are not authorized for use in such applications unless Integrated Silicon Solution, Inc. receives written assurance

📥 Download Datasheet

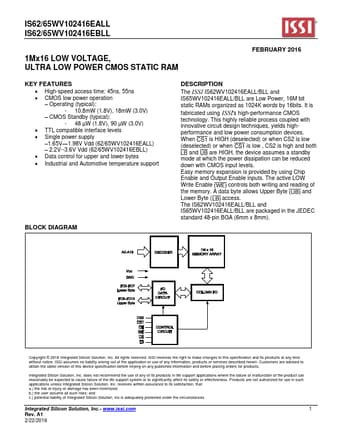

Preview of IS62WV102416EALL PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
IS62WV102416EALL
Manufacturer
ISSI
File Size
1.03 MB
Datasheet
IS62WV102416EALL-ISSI.pdf
Description
ULTRA LOW POWER CMOS STATIC RAM
