IS62WV102416FALL ULTRA LOW POWER CMOS STATIC RAM

IS62WV102416FALL Description

IS62WV102416FALL/BLL IS65WV102416FALL/BLL 1Mx16 LOW VOLTAGE, ULTRA LOW POWER CMOS STATIC RAM FEBURARY 2020 KEY .
The ISSI IS62/65WV102416FALL/FBLL are high-speed, low power, 16M bit static RAMs organized as 1024K words by 16 bits.

IS62WV102416FALL Features

* High-speed access time: 45ns, 55ns
* CMOS low power operation
* Operating Current: 35mA (max. )
* CMOS standby Current: 5.5uA (typ. )
* TTL compatible interface levels
* Single power supply
* 1.65V-2.2V VDD (IS62/65WV102416FALL)
* 2.2V-3.6V VDD (IS62/65

IS62WV102416FALL Applications

* where the failure or malfunction of the product can reasonably be expected to cause failure of the life support system or to significantly affect its safety or effectiveness. Products are not authorized for use in such applications unless Integrated Silicon Solution, Inc. receives written assurance

📥 Download Datasheet

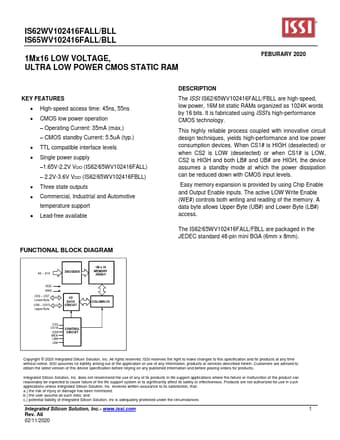

Preview of IS62WV102416FALL PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
IS62WV102416FALL
Manufacturer
ISSI
File Size
591.76 KB
Datasheet
IS62WV102416FALL-ISSI.pdf
Description
ULTRA LOW POWER CMOS STATIC RAM
