IS62WV102416DBLL ULTRA LOW POWER & LOW POWER CMOS STATIC RAM

The ISSI IS62/65WV102416DALL, IS62/65WV102416DBLL are ULTRA LOW POWER CMOS 16Mbit static RAMs organized as 1M words by 16 bits. It is fabricated using ISSI's highperformance CMOS technology. This highly reliable process coupled with innovative circuit design techniques, yields high-performance and l.

IS62WV102416DBLL Features

* High-speed access time: 45ns, 55ns.

* CMOS low power operation

* 25 µA (typical) CMOS standby

* CMOS for optimum speed and power and TTL compatible interface levels

* Single power supply

* 1.65V~1.98V VDD (IS62/65WV102416DALL)

* 2.2V~3.6V VDD (IS62/65WV10241

IS62WV102416DALL-ISSI.pdf

This datasheet PDF includes multiple part numbers: IS62WV102416DBLL, IS62WV102416DALL. Please refer to the document for exact specifications by model.

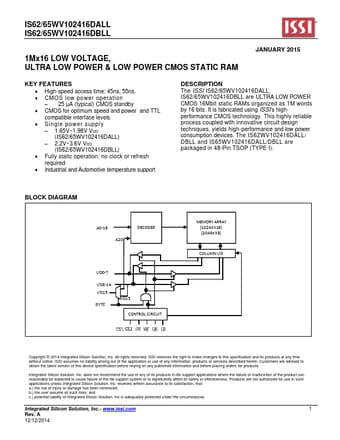

IS62WV102416DBLL Datasheet Preview Page 2 IS62WV102416DBLL Datasheet Preview Page 3

Datasheet Details

Part number:

IS62WV102416DBLL, IS62WV102416DALL

Manufacturer:

ISSI

File Size:

906.84 KB

Description:

Ultra low power & low power cmos static ram.

Note:

This datasheet PDF includes multiple part numbers: IS62WV102416DBLL, IS62WV102416DALL.
Please refer to the document for exact specifications by model.
