IS62WV102416EBLL, IS62WV102416EALL ULTRA LOW POWER CMOS STATIC RAM

ISSI

IS62WV102416EBLL Description

IS62/65WV102416EALL IS62/65WV102416EBLL 1Mx16 LOW VOLTAGE, ULTRA LOW POWER CMOS STATIC RAM FEBRUARY 2016 KEY .
The IS62WV102416EALL/BLL and IS65WV102416EALL/BLL are Low Power, 16M bit static RAMs organized as 1024K words by 16bits.

IS62WV102416EBLL Features

* High-speed access time: 45ns, 55ns
* CMOS low power operation
* Operating (typical): - 10.8mW (1.8V), 18mW (3.0V)
* CMOS Standby (typical): - 48 µW (1.8V), 90 µW (3.0V)
* TTL compatible interface levels
* Single power supply
* 1.65V
* 1.98V Vdd (62/65WV

IS62WV102416EBLL Applications

* where the failure or malfunction of the product can reasonably be expected to cause failure of the life support system or to significantly affect its safety or effectiveness. Products are not authorized for use in such applications unless Integrated Silicon Solution, Inc. receives written assurance

📥 Download Datasheet

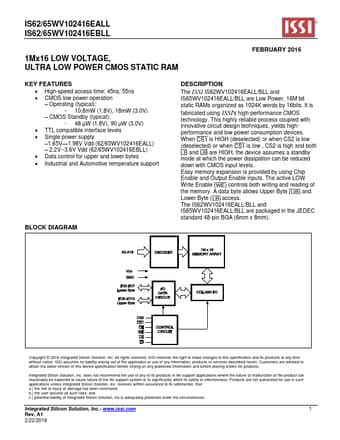

IS62WV102416EBLL Datasheet Preview — This datasheet PDF includes multiple part numbers: IS62WV102416EBLL, IS62WV102416EALL. Please refer to the document for exact specifications by model.

Datasheet Details

Part number: IS62WV102416EBLL, IS62WV102416EALL
Manufacturer: ISSI
File Size: 1.03 MB
Datasheet: IS62WV102416EALL-ISSI.pdf
Description: ULTRA LOW POWER CMOS STATIC RAM
Note: This datasheet PDF includes multiple part numbers: IS62WV102416EBLL, IS62WV102416EALL.
Please refer to the document for exact specifications by model.
