IS62WV10248HALL Datasheet - ISSI

ULTRA LOW POWER CMOS STATIC RAM

IS62WV10248HALL Features

* High-speed access time: 45ns, 55ns

* CMOS low power operation

* Operating Current: 25 mA (max.)

* CMOS Standby Current: 3.2 uA (typ., 25°C)

* TTL compatible interface levels

* Single power supply

* 1.65V-2.2V VDD (IS62/65WV10248HALL)

IS62WV10248HALL General Description

The ISSI IS62/65WV10248HALL/BLL are high-speed, low power, 8M bit static RAMs organized as 1M words by 8 bits. It is fabricated using ISSI's high-performance CMOS technology. This highly reliable process coupled with innovative circuit design techniques, yields high-performance and low power consump.

IS62WV10248HALL Datasheet (469.88 KB)

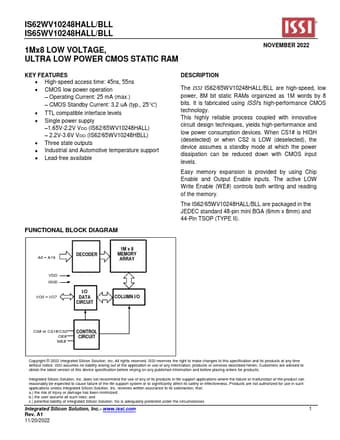

Preview of IS62WV10248HALL PDF

Datasheet Details

Part number:

IS62WV10248HALL

Manufacturer:

ISSI

File Size:

469.88 KB

Description:

Ultra low power cmos static ram.
