IS62WV12816EBLL, IS62WV12816EALL Datasheet - ISSI

IS62WV12816EBLL ULTRA LOW POWER CMOS STATIC RAM

The ISSI IS62/65WV12816EALL/EBLL are high-speed, 2M bit static RAMs organized as 128K words by 16 bits. It is fabricated using ISSI's high-performance CMOS technology. This highly reliable process coupled with innovative circuit design techniques, yields highperformance and low power consumption dev.

IS62WV12816EBLL Features

* High-speed access time: 45ns, 55ns

* CMOS low power operation

* 36 mW (typical) operating

* 9 µW (typical) CMOS standby

* TTL compatible interface levels

* Single power supply

* 1.65V-2.2V VDD (IS62/65WV12816EALL)

* 2.2V-3.6V VDD (IS62/65WV12816EBLL)

IS62WV12816EALL-ISSI.pdf

This datasheet PDF includes multiple part numbers: IS62WV12816EBLL, IS62WV12816EALL. Please refer to the document for exact specifications by model.

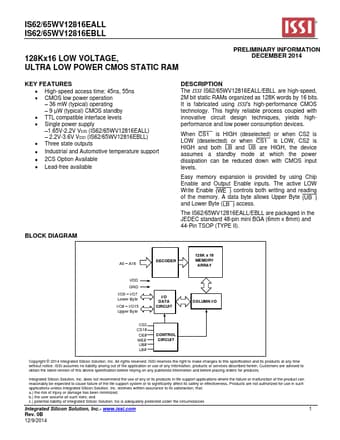

IS62WV12816EBLL Datasheet Preview Page 2 IS62WV12816EBLL Datasheet Preview Page 3

Datasheet Details

Part number:

IS62WV12816EBLL, IS62WV12816EALL

Manufacturer:

ISSI

File Size:

1.05 MB

Description:

Ultra low power cmos static ram.

Note:

This datasheet PDF includes multiple part numbers: IS62WV12816EBLL, IS62WV12816EALL.
Please refer to the document for exact specifications by model.
