IS62WV12816FBLL, IS65WV12816FALL Datasheet - ISSI

IS62WV12816FBLL ULTRA LOW POWER CMOS STATIC RAM

The ISSI IS62/65WV12816FALL/BLL are high-speed, 2M bit static RAMs organized as 128K words by 16 bits. It is fabricated using ISSI's high-performance CMOS technology. This highly reliable process coupled with innovative circuit design techniques, yields high-performance and low power consumption dev.

IS62WV12816FBLL Features

* High-speed access time: 45ns, 55ns

* CMOS low power operation

* Operating Current: 26 mA (max) at 125°C

* CMOS Standby Current: 3.0 uA (typ) at 25°C

* TTL compatible interface levels

* Single power supply

* 1.65V-2.2V VDD (IS62/65WV12816FALL)

* 2.2V-3

IS65WV12816FALL-ISSI.pdf

This datasheet PDF includes multiple part numbers: IS62WV12816FBLL, IS65WV12816FALL. Please refer to the document for exact specifications by model.

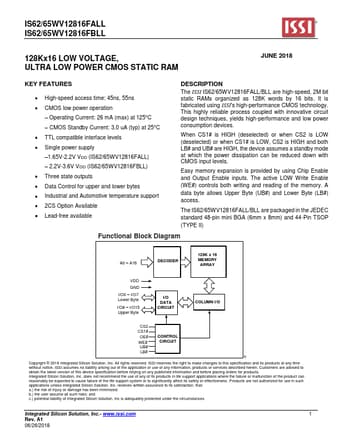

IS62WV12816FBLL Datasheet Preview Page 2 IS62WV12816FBLL Datasheet Preview Page 3

Datasheet Details

Part number:

IS62WV12816FBLL, IS65WV12816FALL

Manufacturer:

ISSI

File Size:

591.04 KB

Description:

Ultra low power cmos static ram.

Note:

This datasheet PDF includes multiple part numbers: IS62WV12816FBLL, IS65WV12816FALL.
Please refer to the document for exact specifications by model.
