IS63WV1024BLL, IS64WV1024BLL - 128K x 8 HIGH-SPEED CMOS STATIC RAM

ISSI

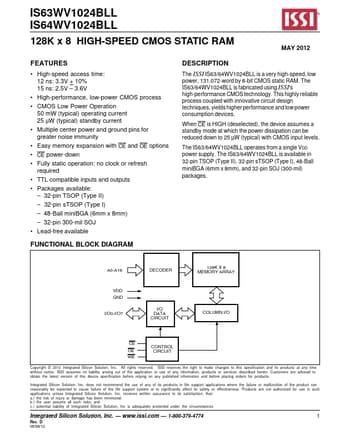

IS63WV1024BLL Datasheet Preview — This datasheet PDF includes multiple part numbers: IS63WV1024BLL, IS64WV1024BLL. Please refer to the document for exact specifications by model.

Datasheet Details

Part number	IS63WV1024BLL, IS64WV1024BLL
Manufacturer	ISSI
File Size	864.62 KB
Description	128K x 8 HIGH-SPEED CMOS STATIC RAM
Datasheet	IS64WV1024BLL_ISSI.pdf
Note	This datasheet PDF includes multiple part numbers: IS63WV1024BLL, IS64WV1024BLL. Please refer to the document for exact specifications by model.

IS63WV1024BLL Product details

Description

The ISSI IS63/64WV1024BLL is a very high-speed, low power, 131,072-word by 8-bit CMOS static RAM.The IS63/64WV1024BLL is fabricated using ISSI's high-performance CMOS technology.This highly reliable process coupled with innovative circuit design techniques, yields higher performance and low power consumption devices.When CE is HIGH (deselected), the device assumes a standby mode at which the power dissipation can be reduced down to 25 µW (typical) with CMOS input levels.The IS63/64WV1024BLL

Features

High-speed access time: 12 ns: 3.3V + 10% 15 ns: 2.5V.
3.6V.
High-performance, low-power CMOS process.
CMOS Low Power Operation 50 mW (typical) operating current 25 µW (typical) standby current.
Multiple center power and ground pins for greater noise immunity.
Easy memory expansion with CE and OE options.
CE power-down.
Fully static operation: no clock or refresh required.
TTL compatible inputs and outputs.
