IS63WV1288DALL - 128K x 8 HIGH-SPEED CMOS STATIC RAM

ISSI

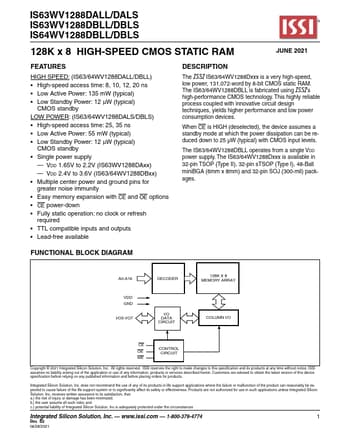

IS63WV1288DALL Datasheet Preview — Preview of IS63WV1288DALL PDF

Datasheet Details

Part number	IS63WV1288DALL
Manufacturer	ISSI
File Size	556.22 KB
Description	128K x 8 HIGH-SPEED CMOS STATIC RAM
Datasheet	IS63WV1288DALL-ISSI.pdf

IS63WV1288DALL Product details

Description

The ISSI IS63/64WV1288Dxxx is a very high-speed, low power, 131,072-word by 8-bit CMOS static RAM.The IS63/64WV1288DBLL is fabricated using ISSI's high-performance CMOS technology.This highly reliable process coupled with innovative circuit design techniques, yields higher performance and low power consumption devices.When CE is HIGH (deselected), the device assumes a standby mode at which the power dissipation can be reduced down to 25 µW (typical) with CMOS input levels.The IS63/64WV1288DB

Features

HIGH SPEED: (IS63/64WV1288DALL/DBLL).
High-speed access time: 8, 10, 12, 20 ns.
Low Active Power: 135 mW (typical).
Low Standby Power: 12 µW (typical) CMOS standby LOW POWER: (IS63/64WV1288DALS/DBLS).
High-speed access time: 25, 35 ns.
Low Active Power: 55 mW (typical).
Low Standby Power: 12 µW (typical) CMOS standby.
Single power supply.
Vdd 1.65V to 2.2V (IS63WV1288DAxx).
Vdd 2.4V to 3.6V (IS63/64WV1288DBxx).
